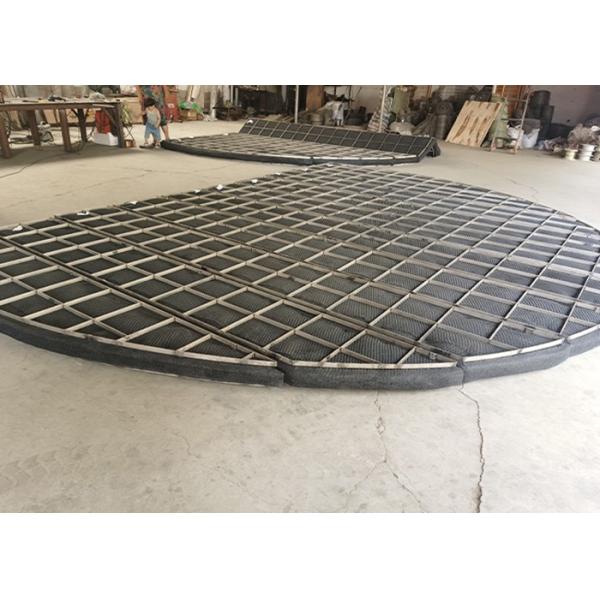

1000mmx1000mm Demister Pad Screen Grids And Plate Edge SS304 No Sections

Brand Name : Yuanqiao

Model Number : YQ-217

Certification : ISO9001

Place of Origin : Anping, China

MOQ : 1pc

Price : Negociation

Payment Terms : L/C, T/T

Supply Ability : 1000 pcs per month

Delivery Time : 5-10 days

Packaging Details : Wooden boxes

Product Name : Demister Pad

Material : Stainless steel (AISI201,202,301,302,3041,304L,321/316L)

Shape : Donut, Circle

Thickness : 100mm, 150mm, Or As Per Order

Sections : 6/8, Or As Per Order

Application : Manufacturing Plant, Machinery Repair Shops, chemical indus

Grids : 25*3mm flat bar

Shape & Size : Φ1700-Φ630 Φ2200-Φ820

Type : Filter Elements

Core Components : Engine, Bearing, Gearbox, Pressure vessel

Contact Now

1000mmx1000mm Demister Pad Screen Grids And Plate Edge Ss304 No Sections

1000mmx1000mm Demister Pad Screen Grids And Plate Edge Ss304 No Sections

Description
Product Name: Air Filter Mesh Pad Size: 1000mm*1000mm, As Per Order
Sections: No Sections; Whole Application: Ventilation System
Material: SS304 SS316 Frame: Metal Plate
Packing: Wooden Case Usage: Air Filter
High Light:

1000mmx1000mm demister pad

,

no sections demister pad

,

ss304 demister pad

1000mmx1000mm Screen Grids And Plate Edge Knitted Wire Mesh Demister Pad

Wire mesh pad demister, which are used in removing droplets entrained in flow gas, is constructed from knitted wire mesh with a cellular structure. The knit mesh are made into a mesh pad with determinate thickness and diameter, through which the two phases liquid-gas or liquid-vapor are disengaged.
From the statistic data obtained both in laboratory tests and industrial applications, it shows that the proper designed mesh pad demister allows a separation of liquids carried by gas with efficiency reaching 99.9%.

Demister mist eliminator Specifications in this case

Item

Value

Unit

Material

SS304

/

Shape & Size

1000*1000

mm

Mesh Thickness

100

mm

Demister Height

100

mm

Wire Diameter

0.23

mm

Mesh Density

144

kg/m3

Void Fraction

0.982

/

Specific Area

316

m2/m3

Grids

crimped mesh + curved ss plate

/

Applications of demister pad

1. SS304 Water solutions, Nitric acid reduced crude petroleum fraction etc.

2. SS316L Fatty acid reduced crude containing naphthenic acids and corrosive chemicals3.

3. Synthetic fiber For corrosive service at moderate temperature

4. PP(Polypropylene) For corrosive service at temperature up to 70℃

5. PTFE For corrosive service at temperature of (-190℃, 250℃)

6. Monel Caustic soda, dilute acid

7. Nickel Caustic Soda, food products

8. Copper Freon, alcohol

9. Aluminium Nitric Acid

The material for demister pad we have in stock

PP, PTFE, SS304, SS304L, SS316, SS316L, SS201, SS202, SS310S, SS321, Copper, Nickel, Titanium, Duplex 2205, Duplex 2507, NS-80, Monel 400 alloy, Co-knit 904L+fiber glass, Co-knit 316L+ fiber glass, Co-knit 316L+PP flat...
Also we can handle other materials, but please specify when ordering.
